A telescopic drawer slide may seem like a simple component in cabinetry or machinery, but it plays a crucial role in performance, durability, and user experience. The way you mount your ball bearing slide can significantly affect its load capacity, smoothness of motion, and longevity. Choosing the right mounting method isn’t just about installation—it’s about optimizing function for your specific application.
So, what are the best practices for slide mounting? Let’s explore the most common methods and how to use them effectively.
1. Hard Mounting: The Standard Approach

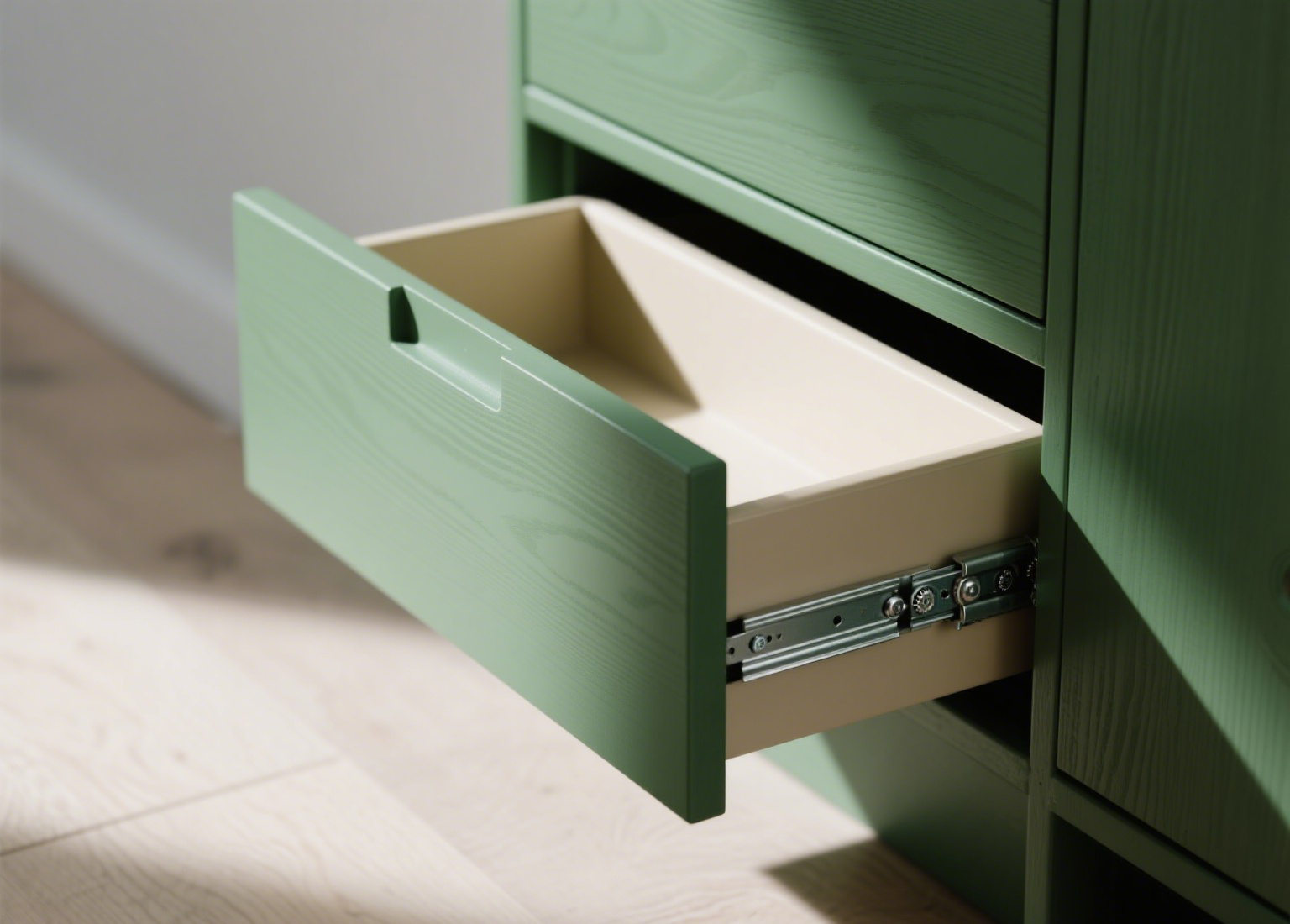

Hard mounting is the most widely used method for installing drawer slides. In this setup, the inner member (attached to the drawer) and the outer member (attached to the cabinet) are both directly screwed into their respective surfaces.
This method ensures maximum load capacity and stability. It’s ideal for side-mounted applications such as the Accuride 3832E Light-Duty Slide, commonly used in light to medium-duty cabinets and furniture.
Best Practice Tip: Always ensure precise alignment during installation. Even slight misalignment can cause binding or premature wear.
2. Flat-Mounting: Aesthetic vs. Performance Trade-Off
Some users choose to “flat-mount” side-mount slides—installing them on the underside of the drawer instead of the sides. While this hides the hardware from view (offering a cleaner aesthetic), it comes at a cost.
Flat-mounting typically reduces a slide’s load capacity by at least 50%. This is because the forces are no longer aligned with the slide’s engineered design.
Best Practice Tip: If concealment is a priority, consider dedicated under-mount slides like the Accuride 3135EC Easy-Close, which are designed for full load capacity and smooth operation when mounted beneath the drawer.
3. Bracket Mounting: Flexibility Without Compromise
Bracket mounting allows you to adapt a slide designed for one mounting style to another—such as converting a side-mounted slide into a bottom- or top-mounted configuration.
For example, special brackets for the Accuride 9300 Heavy-Duty Series enable flexible installation while preserving full load ratings. Brackets also help accommodate face-frame cabinets or non-standard drawer designs.
Best Practice Tip: Use manufacturer-recommended brackets to ensure compatibility and structural integrity. Never improvise with non-engineered brackets.
4. Vertical Mounting: Specialized Applications Only
Vertical mounting involves orienting the slide along the vertical (y-axis) to enable up-and-down movement. This method is used in specialized applications like height-adjustable appliances, lift systems, or dynamic furniture—such as those featured in Virginia Tech’s FutureHAUS project using the Accuride 116RC Heavy-Duty Linear Track System.
However, standard ball bearing slides are not designed for vertical loads. The constant pull on ball retainers can lead to failure.
Best Practice Tip: Use only slides specifically engineered for vertical use, such as the Accuride 115RS, which features nylon-reinforced ball retainers to withstand axial stress.
5. Rail Mounting: Precision and Adaptability
In rail mounting, the entire slide mechanism is fixed to the cabinet, and the drawer “floats” on rails attached to its sides. This method is common in filing cabinets and high-precision applications.
Premium rail-mounted slides like the Accuride 7432 Light-Duty offer exceptional smoothness, progressive motion, and built-in detents to keep drawers securely closed.
Best Practice Tip: Rail mounting excels in environments with slight dimensional variances. Its self-aligning nature compensates for minor inconsistencies in cabinet or drawer construction.
Conclusion: Match Mounting to Application
There is no one-size-fits-all solution when it comes to slide mounting. The best practice is to match the mounting method to your application’s functional, aesthetic, and load requirements.
- For standard drawers: Hard mounting is reliable and efficient.
- For hidden hardware: Choose under-mount slides, not flat-mounted side slides.
- For design flexibility: Bracket mounting offers adaptability without sacrificing strength.
- For vertical motion: Use specially designed linear systems.
- For precision and float design: Rail mounting delivers superior performance.
By understanding these mounting methods and their implications, you ensure your sliding mechanisms operate smoothly, last longer, and enhance the overall quality of your product.
Choose wisely—your slide’s performance depends on it.
