What Are Ball Retainers? Functions, Materials & Importance in Slide Performance

In the realm of ball slide systems, smooth and precise movement is often taken for granted—until something goes wrong. Behind that seamless glide lies a small but critical component: the ball retainer. Though easily overlooked, this unassuming part plays a pivotal role in ensuring that ball bearings operate in harmony, enabling slides to function with efficiency, durability, and reliability. Let’s delve into what ball retainers are, how they work, the materials they’re made from, and why they’re indispensable to slide performance.

What Is a Ball Retainer?

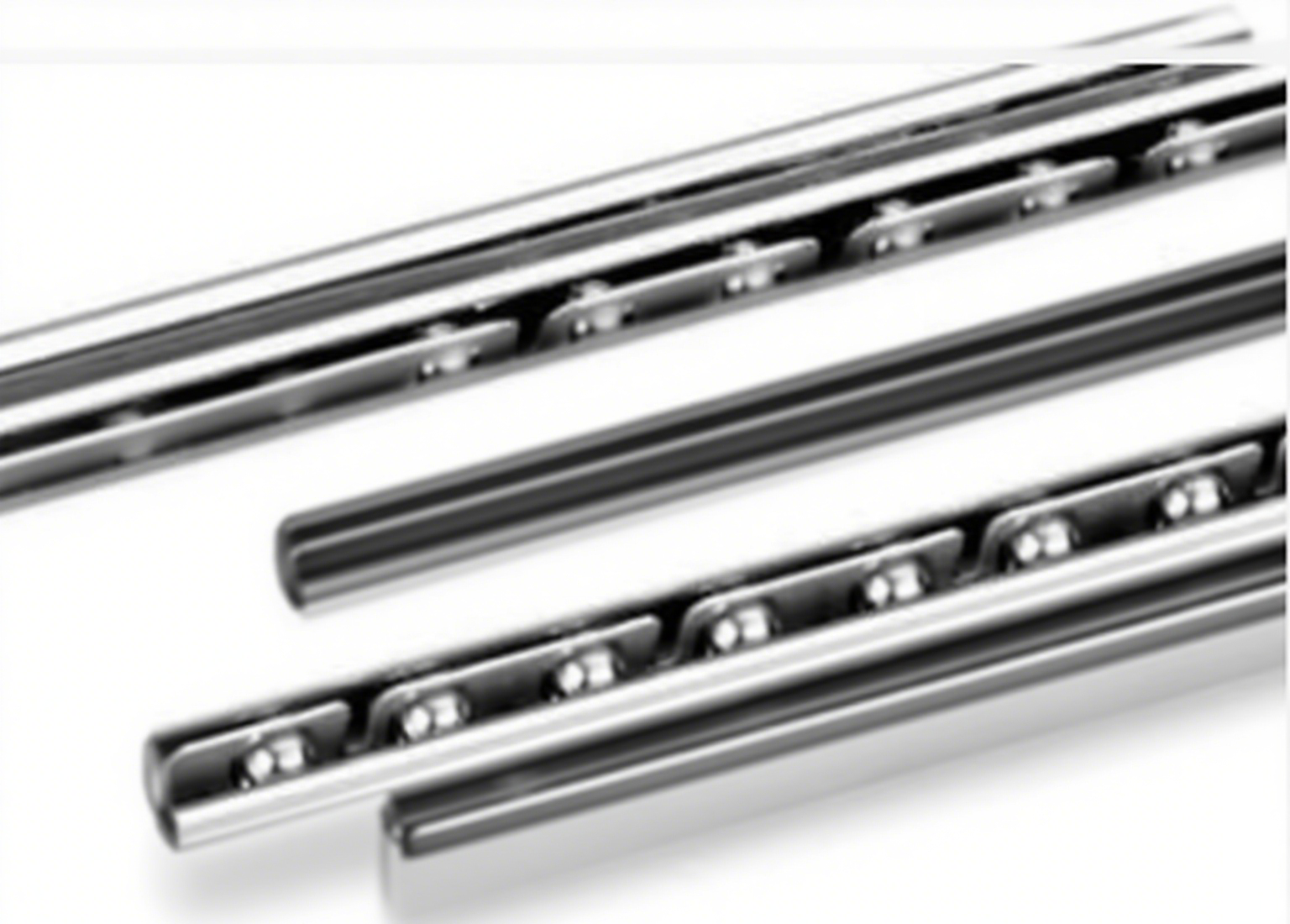

A ball retainer, also known as a ball cage or separator, is a specialized component designed to house and separate individual ball bearings within a ball slide system. Positioned between the slide’s stationary and moving members, it acts as a structural framework that keeps each ball in its designated place. Unlike a chaotic cluster of loose bearings, which would cause friction, uneven wear, and jamming, the retainer ensures each ball sits in its own compartment—typically a series of evenly spaced pockets or slots. This organized arrangement is the foundation of the slide’s ability to move smoothly along its grooves.

Core Functions of Ball Retainers

The role of a ball retainer extends far beyond mere organization. Its design is engineered to address multiple challenges that would otherwise compromise slide performance:

Preventing Ball-to-Ball Contact: By isolating each ball in a separate compartment, the retainer eliminates direct friction between adjacent bearings. This reduces heat generation and minimizes wear, extending the lifespan of both the balls and the slide itself.
Maintaining Uniform Spacing: Consistent spacing ensures that the load applied to the slide is evenly distributed across all balls. Without a retainer, balls might cluster under pressure, leading to uneven stress, deformation, or even system failure.
Guiding Movement Along Grooves: The retainer aligns the balls with the slide’s grooves, ensuring they move in a straight, controlled path. This precision is vital for applications requiring accurate positioning, such as drawer slides, industrial machinery, or medical equipment.
Reducing Noise and Vibration: Organized ball movement minimizes rattling and vibration, contributing to quieter operation—an important feature in residential and office settings.

Common Materials Used in Ball Retainers

The choice of material for a ball retainer depends on the application’s requirements, including load capacity, temperature resistance, corrosion resistance, and cost. Here are some widely used materials:

Plastics (Nylon, Polypropylene): Lightweight, cost-effective, and resistant to corrosion, plastics are ideal for low to medium-load applications like furniture slides or consumer electronics. Nylon, in particular, offers good wear resistance and self-lubricating properties, reducing the need for maintenance.
Metal (Steel, Brass): For high-load or high-temperature environments—such as industrial machinery or automotive systems—metal retainers provide superior strength and durability. Steel is valued for its rigidity, while brass offers better corrosion resistance and smoother movement.
Composite Materials: Combinations of plastics and fibers (e.g., glass-reinforced nylon) balance strength and weight, making them suitable for applications requiring both durability and reduced mass, such as aerospace components.

Why Ball Retainers Are Critical to Slide Performance

The importance of ball retainers becomes clear when considering the consequences of their absence or failure. Without a retainer, ball bearings would collide, rub against each other, and misalign with the slide’s grooves. This would result in:

Increased Friction and Wear: Uncontrolled movement accelerates wear on both the balls and the slide, leading to premature failure.
Reduced Precision: Misaligned balls cause erratic movement, making accurate positioning impossible—a critical issue in precision equipment.
Higher Maintenance Costs: Frequent replacements and repairs become necessary, driving up operational expenses.
Safety Risks: In heavy-duty applications, a failed slide system could lead to equipment damage or even injury.

In contrast, a well-designed ball retainer ensures that the slide operates at peak efficiency, with minimal friction, consistent movement, and extended service life. It transforms a simple collection of bearings into a synchronized system that delivers the smooth, reliable performance users expect.

Conclusion

Ball retainers may be small, but their impact on ball slide performance is enormous. By organizing, separating, and guiding ball bearings, they prevent friction, ensure even load distribution, and enable precise movement—all while reducing noise and extending the system’s lifespan. Whether made of plastic, metal, or composite materials, these components are engineered to meet the unique demands of their applications, from everyday furniture to high-stakes industrial machinery.

Next time you experience the effortless glide of a drawer or the precise movement of a machine, remember: behind that smooth motion is the unsung hero of the slide system—the ball retainer.
