Understanding Slide Detents: Functions, Adjustment & Common Issues

When it comes to precision motion components like ball bearing slides, even the smallest features can have a significant impact on performance and user experience. One such feature is the detent—a subtle yet essential mechanism designed to enhance control and stability in sliding applications. Whether you’re designing furniture, industrial equipment, or medical devices, understanding detents is crucial for selecting the right slide solution.

What is a Detent?

A detent is a mechanical feature that uses friction or physical interference to hold a slide in a specific position. It acts as a “positioning aid,” preventing unintended movement and ensuring the slide remains stable during use. Detents are commonly found in full-extension ball bearing slides and are engineered to provide a tactile or audible “click” when engaging or disengaging.

There are two primary types of detents used in ball bearing slides:

1. Hold-In Detent: This is the most common type. A hold-in detent ensures that the drawer or sliding component remains securely closed. When you close the drawer, the detent engages, creating resistance that prevents the drawer from drifting open due to vibration or slight inclines. This is especially important in environments where safety and stability are paramount—such as in vehicles, medical carts, or office furniture.

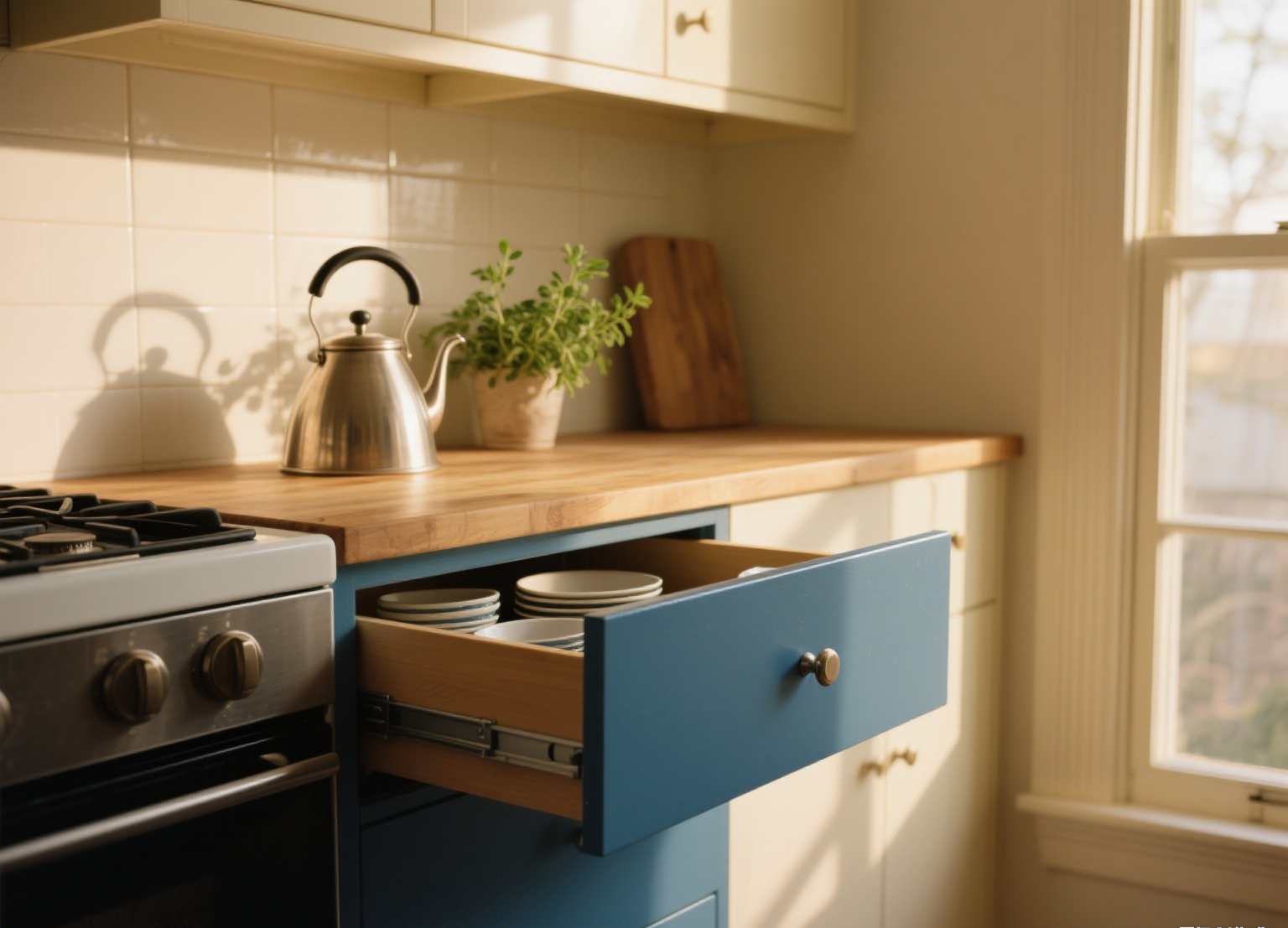

2. Hold-Out Detent: This type keeps the drawer in a fully extended or partially extended position. Once the drawer is pulled out, the hold-out detent engages, requiring additional force to overcome the resistance and close the drawer. This is ideal for applications where users need both hands to access the contents of a drawer, such as in tool cabinets or kitchen drawers, ensuring the drawer stays open for easy access.

Adjustment and Maintenance

While detents are designed for durability, their performance can be affected by factors such as load, alignment, and environmental conditions. Most detents are factory-set and not user-adjustable. However, ensuring proper installation—such as aligning the slide rails correctly and verifying the load does not exceed specifications—is critical to maintaining detent functionality.

Over time, dust or debris can accumulate in the slide mechanism, potentially reducing the effectiveness of the detent. Regular cleaning with a dry cloth or compressed air can help maintain optimal performance.

Common Issues and Troubleshooting

• Weak or Failing Detent: If the detent feels loose or no longer holds the drawer in place, it may be due to wear, overloading, or misalignment. Inspect the slide for damage and ensure the load is within the rated capacity.
• Excessive Resistance: If too much force is required to open or close the drawer, check for obstructions or misalignment. Lubrication (if recommended by the manufacturer) may also help.
• Inconsistent Engagement: If the detent engages only sometimes, verify that the slide is installed level and parallel. Uneven mounting surfaces can cause uneven stress on the detent mechanism.

Conclusion

Detents may be small in size, but their role in enhancing user safety, convenience, and product reliability is significant. By understanding the different types—hold-in and hold-out—and how they function, engineers and designers can make informed decisions when specifying slide hardware. Whether you’re aiming for a secure closure or a stable open position, the right detent can make all the difference in the final user experience.
