Ball Slide Cross-Section: Shapes, Dimensions & Their Impact on Performance

When selecting ball bearing slides for applications in cabinets, industrial machinery, or electronic enclosures, engineers and designers often focus on load capacity, travel distance, and smoothness of motion. However, one critical aspect that significantly influences integration and performance is frequently overlooked: the cross-section of the slide.

What is a Ball Slide Cross-Section?

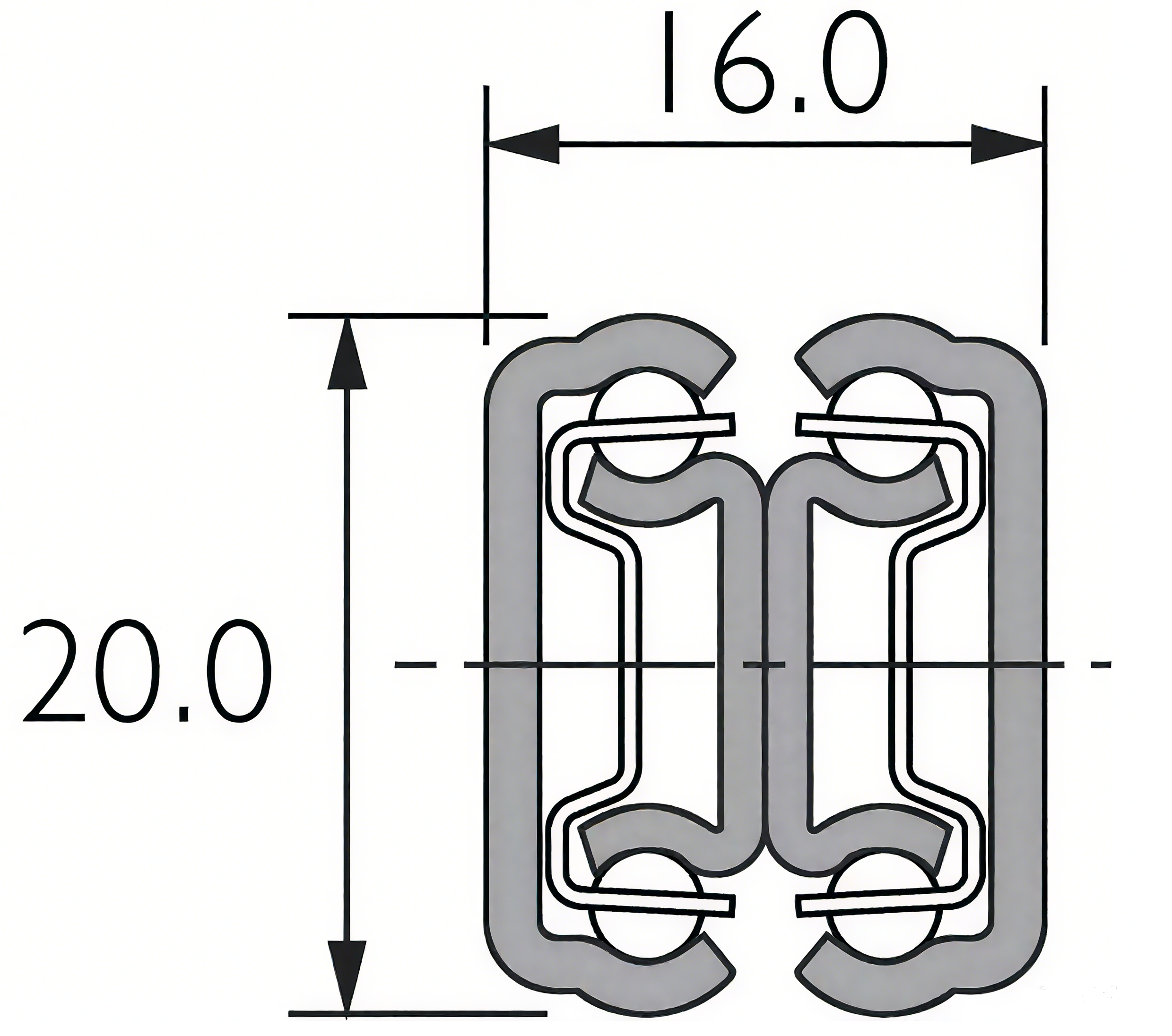

Imagine slicing a ball slide perpendicularly to the direction in which it extends and retracts. The resulting view—revealing the internal and external structure of the inner rail, middle rail, and outer rail—is known as the cross-section. This two-dimensional profile provides a detailed look at the slide’s geometry, including critical dimensions such as width (W) and height (H).

Cross-section illustrations are essential tools in product datasheets. They not only show the physical shape of the slide but also include precise dimensional data necessary for proper installation and system design.

Why Dimensions Matter: Width and Height

The width and height of a slide’s cross-section directly affect how it fits within an assembly:

• Width (W): This dimension determines the side-to-side space the slide occupies. When installing slides on both sides of a drawer or tray, the total width consumed by the pair must be considered to ensure the drawer fits within the cabinet or frame without interference.
• Height (H): The height influences the vertical clearance needed. In space-constrained applications—such as server racks or medical equipment—minimizing the slide’s profile can free up room for other components or allow for thinner enclosures.

Beyond spatial planning, the cross-sectional dimensions also relate to structural integrity. A taller or wider slide often provides greater resistance to torsional forces and can support higher loads, especially when the load is offset from the centerline.

Common Cross-Sectional Shapes and Their Advantages

Ball slides come in various cross-sectional profiles, each engineered for specific performance characteristics:

1. C-Shape (or U-Shape): This is one of the most common designs. The open channel provides access for ball retainer cages and facilitates lubrication. It offers a good balance of strength, low profile, and ease of manufacturing.
2. Box-Shape (Closed Section): Featuring a fully enclosed rectangular or square profile, this design maximizes rigidity and load-bearing capacity. It is ideal for heavy-duty applications where deflection and twisting must be minimized.
3. Tapered or Streamlined Profiles: Some high-end slides feature aerodynamic or tapered edges to reduce weight and improve aesthetics, often used in premium furniture or consumer electronics.

Design Implications

Understanding the cross-section allows designers to:

• Optimize cabinet and drawer dimensions.
• Ensure adequate clearance for full extension and retraction.
• Select the appropriate slide strength for the intended load.
• Achieve a clean, flush-mounted appearance when required.

Conclusion

While often hidden from view, the cross-section of a ball slide plays a pivotal role in its functionality and integration. By carefully analyzing the shape, width, and height, engineers can make informed decisions that enhance both performance and space efficiency. When specifying slides for your next project, don’t just look at load ratings—examine the cross-section. It might just be the key to a perfect fit.
