Ball Bearings in Slides: Sizing, Load Capacity & Quality Standards Explained

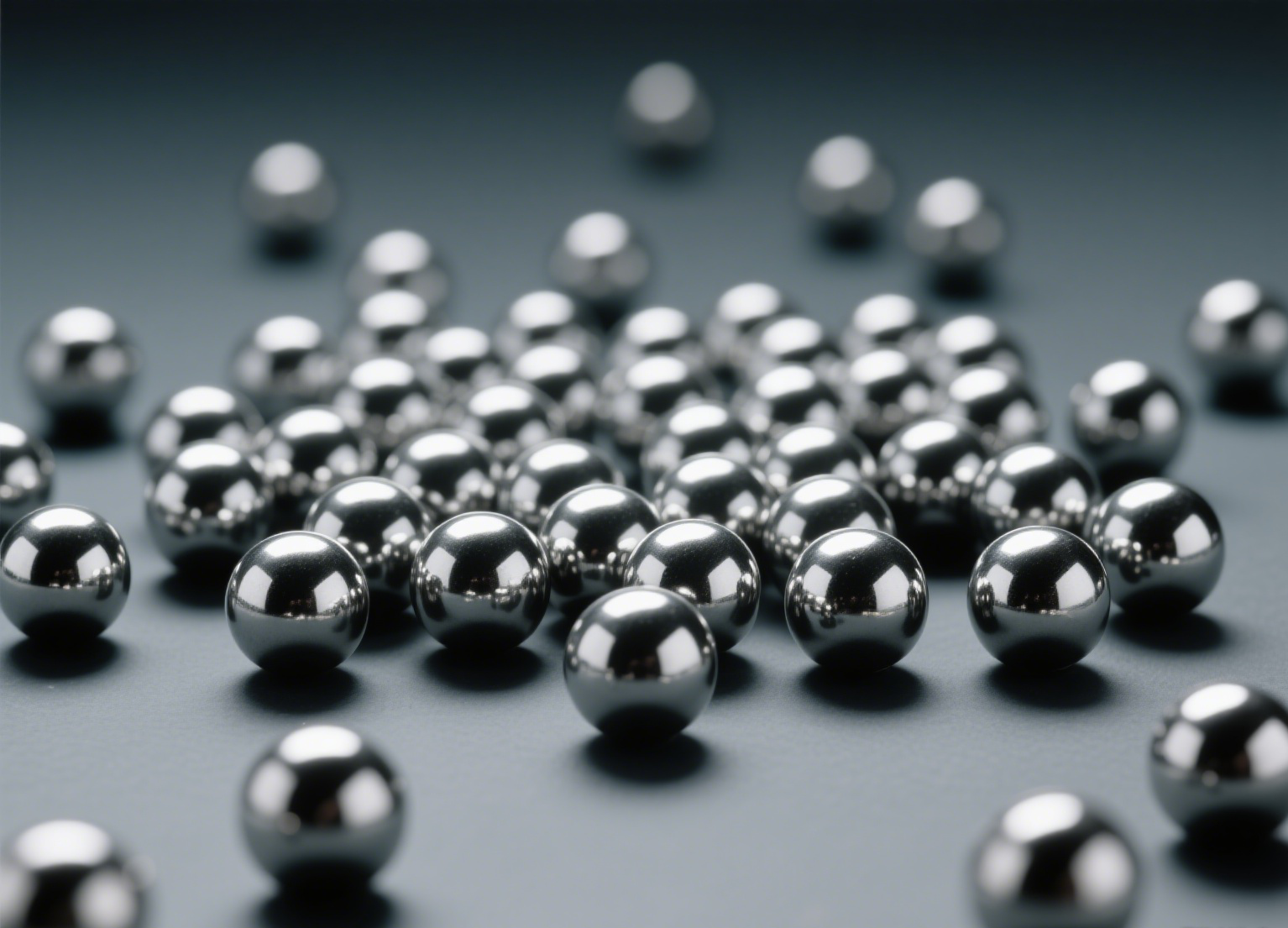

When it comes to the smooth, reliable operation of ball bearing slides, the heart of the mechanism lies in the ball bearings themselves. These tiny, precision-engineered spheres are critical components that determine the performance, durability, and suitability of a slide for specific applications. In this article, we’ll delve into the key aspects of ball bearings used in slides, covering their materials, sizing, load capacity, and the quality standards that ensure consistent performance.
Materials: The Foundation of Performance
Ball bearings are typically manufactured from three primary materials: steel, stainless steel, and polymer. Each material offers distinct advantages depending on the application requirements.
- Steel Ball Bearings: Most standard slides utilize carburized steel ball bearings. Carburizing is a heat treatment process that hardens the surface of the steel, enhancing its wear resistance and overall strength. Steel bearings provide excellent load capacity and are ideal for heavy-duty applications where strength and durability are paramount.
- Stainless Steel Ball Bearings: For environments where corrosion resistance is essential—such as in food processing, medical equipment, or marine applications—stainless steel ball bearings are the preferred choice. While they may have slightly lower load capacity compared to carburized steel, their ability to withstand moisture and chemicals makes them indispensable in harsh conditions.
- Polymer Ball Bearings: Slides equipped with polymer (plastic) ball bearings offer a quieter operation, making them suitable for applications where noise reduction is critical, such as in office furniture or consumer electronics. Although generally not as strong as metal bearings, polymer bearings are lightweight and resistant to certain chemicals, providing a cost-effective solution for lighter loads.
Sizing: Precision for Smooth Motion
The size of ball bearings directly impacts the slide’s performance. Bearings are precisely sized to fit within the slide’s raceways, ensuring smooth linear motion with minimal friction. Standard ball bearing sizes range from 1.5 mm to 6 mm in diameter, with the most common sizes being 3 mm and 4 mm. The choice of size depends on the slide’s design and intended load capacity—larger bearings can support heavier loads but may require a larger slide profile.
Consistency in sizing is crucial. High-quality bearings are manufactured to tight tolerances (often within microns), ensuring uniform performance and longevity. Even slight deviations in size can lead to increased friction, uneven wear, and reduced lifespan.
Load Capacity: Matching Strength to Application
Load capacity is one of the most critical factors in slide selection. Metal ball bearings, particularly those made from carburized steel, significantly enhance a slide’s ability to support heavy loads. The load capacity is determined by several factors, including the number, size, and material of the ball bearings, as well as the design of the raceways.
For example, a slide with double rows of 4 mm carburized steel bearings will typically support a higher load than one with single rows of 3 mm bearings. Engineers must carefully match the slide’s load capacity to the application’s requirements to prevent premature failure.
Quality Standards: Ensuring Reliability
To guarantee performance and reliability, ball bearings in slides must adhere to stringent quality standards. These include dimensional accuracy, surface finish, hardness, and material purity. Bearings are often tested for hardness (measured on the Rockwell or Vickers scale) and subjected to rigorous quality control processes to detect defects such as cracks or surface imperfections.
Reputable manufacturers follow international standards such as ISO 3290 (for bearing balls) and ISO 492 (for radial bearings), ensuring that their products meet global benchmarks for quality and performance.
Conclusion
The choice of ball bearings in a slide is far more than a simple component selection—it’s a critical decision that influences the entire system’s performance. Whether prioritizing strength, quiet operation, or corrosion resistance, understanding the materials, sizing, load capacity, and quality standards of ball bearings empowers engineers and designers to select the optimal slide for their application. By focusing on these key factors, manufacturers can deliver slides that offer smooth, reliable, and long-lasting performance.
